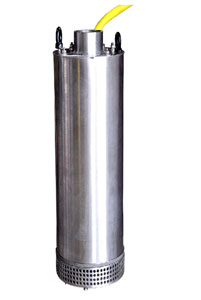

Stainless Steel Submersible Dewatering Pump-SLS Series

The entire pump is built with stainless steel, right from body to the impeller and shaft, making it light and resistant to corrosion. This pump is sealed mechanically from both inside and outside, preventing electrical and water leakage during its operation and enhancing life of the pump. Positioning the suction at the bottom edge of the pump facilitates removal of water, right up to the bottom level.

Specification

Portable and Light Weight Pumps In Stainless Steel Construction.

Portable Self Priming Bottom Suction Submersible Dewatering Pump - Motor On Top and Jacketed

As Standard Model

All Wetted Parts in Stainless Steel Construction.

All Cast Parts in Investment Castings of CF8

All Fabricated Parts in S.S.-202.Pump Shaft in S.S.-410

Motor Is Oil Filled With Submersible Winding.

Water Proof, Oil Proof Submersible Cable of 4 Core Of Suitable Conductor Size.

Power Supply - 415VAC, 50HZ for Three Phase and 230VAC 50HZ For Single Phase.

Also Available In

CF8M, 904, 904l, 316l, 316, 304, WCB and Other MOC for Specific Applications.

Input Power of Specific Voltages and Frequency Configurations.

All Cast Parts in Investment Castings.

Dry Motor With Class “F” Or Class “H” Insulation.

Applications - Can Be Made Suitable For Sea Water Handling, Effluents, And Other Corrosive Liquids

• Construction : Foundation work for constructions of building, Road, Control of Ground Water Level, Sedimentations tanks at construction sites, Tunnel constructions etc.
• Industries : Power plants, Cements plants, Thermal plants, Shipyard / Dry Dock application.
• Mining : Underground Mines " Galleries to collecting pits, Underground Mines " Water from develpment drifting, Coal Mines, Open Mines " from bottom to surface, Mine dewatering.
• Municipal : Building of Roads, Tunnel construction / work on Channels & Rivers, Building of Bridges / Dams, Flood Dewatering, Fire Brigade, Various Infrastructure Projects.
  They are ideal for basement Dewatering, Pumping Heavily Contaminated Water with Sand, Gravel & Sludge in construction Sites & Mines, Industrial Processes, Pits, Quarries, Narrow Coffers, Dams well Point Dewatering, Mass Water Transfer/Dewatering & Many More such applications.
