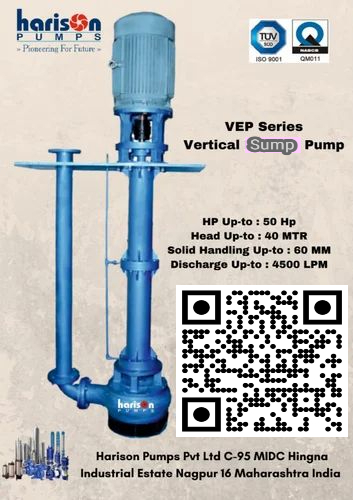

Vertical Sump Pumps - VEP Series

Solid handling capacity

Model VEP-40 = 25 mm.

Model VEP-75 = 38 mm.

Model VEP-100 = 70 mm.

Head up to 40 mtr

Capacity upto 300 Cu.Mtr./hr

Salient Features Of Vertical Sump Pump

Vertical wet pit type with Pump submerged and motor at the top coupled by extended shaft.

Available in SS, Ci, Cast Steel and rubber lined constructions.

Column pipe and discharge pipe are mounted on the same motor stool frame, this enables to pull out the pump for maintenance purpose without emptying the pit.

Available for column length upto 6 mtrs.

Heavy duty thrust bearing is used.

Permanently lubricated durable lower bush bearing can be provided in Bronze, Teflon or Rubber etc. As per application

Additional Intermediate bush bearing is provided after every one meter column length.

Ideal for handling liquid at high temperature or which are corrosive or inflammable.

Chokeless, screenless and glandless pump with non-clog impeller.

Vertical flange mounted motor as prime mover

Vertical Sump Pumps is designed for applications like:

High Temprature liquid pumping

Corrosive & Abrasive Slurry

Septic Tanks Effluent

STP/ETP Systems

Water Transfer

Dewatering

Basement Sumps
