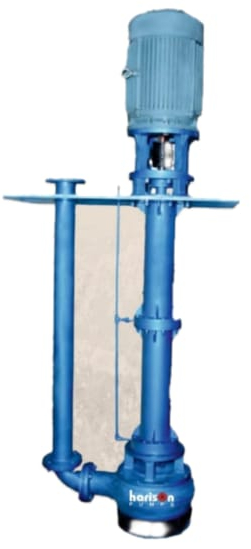

Vertical Sump Pump - VEP Series
Harison Pumps Pvt. Ltd. offers a range of high-performance vertical sump pumps designed for demanding applications. These pumps are engineered to operate efficiently in vertical wet pit installations, where the pump is submerged in the liquid and the motor remains above the liquid, connected by an extended shaft. This design facilitates easy maintenance and ensures reliable operation even in challenging environments.
Salient Features Of Vertical Sump Pump
Design: Vertical wet pit type with the pump submerged and the motor mounted at the top, coupled via an extended shaft.
Construction Materials: Available in stainless steel (SS), cast iron (CI), cast steel, and rubber-lined versions to suit various environmental conditions and applications.
Column Length: Available for column lengths up to 6 meters, accommodating a range of installation depths.
Solid Handling Capacity:
- Model VEP-40: Handles solids up to 25mm.
- Model VEP-75: Handles solids up to 38mm.
- Model VEP-100: Handles solids up to 70mm.
- Head Capacity: Up to 40 meters.
- Flow Capacity: Up to 300 cubic meters per hour.
- Thrust Bearing: Heavy-duty thrust bearing for enhanced load handling.
- Lower Bush Bearing: Permanently lubricated, available in bronze, Teflon, or rubber, depending on the application.
- Intermediate Bush Bearings: Additional bearings provided every meter of column length to ensure stability and reduce wear.
- Impeller Design: Non-clog impeller that is chokeless, screenless, and glandless to handle solids and prevent blockages.
- Motor Mounting: Vertical flange-mounted motor.
Vertical Sump Pumps is designed for applications like:
High Temperature Liquid Pumping:- These pumps are designed to handle liquids at high temperatures, making them suitable for use in power plants, industrial processes, and any application involving elevated thermal conditions.
Corrosive & Abrasive Slurry:- The pumps are ideal for managing corrosive and abrasive slurries found in mining, construction, and chemical industries. Their durable construction and specialized materials protect against wear and chemical damage.
Septic Tanks Effluent:- Designed to manage effluent from septic tanks, these pumps efficiently handle wastewater containing solids and other debris, ensuring effective system maintenance and operation.
STP/ETP Systems: - Essential for Sewage Treatment Plants (STP) and Effluent Treatment Plants (ETP), these pumps handle various waste streams, including raw sewage and treated effluent, supporting efficient wastewater treatment processes.
Water Transfer:- Suitable for transferring water in municipal systems, irrigation projects, and industrial processes, these pumps offer reliable performance for handling large volumes of water.
Dewatering:- Effective in dewatering applications, such as removing water from construction sites, mines, or flooded areas, preventing operational disruptions and maintaining site safety.
Basement Sumps: - Ideal for residential and commercial basements, these pumps manage water accumulation in sump pits, preventing flooding and water damage.
Harison Pumps Pvt. Ltd.’s vertical sump pumps are engineered to deliver high performance and durability across a wide range of challenging applications, ensuring efficient and reliable operation.
