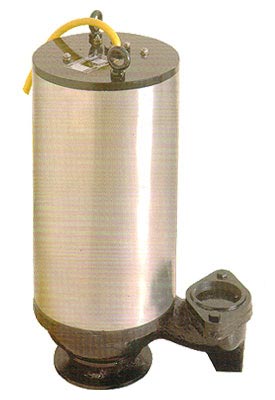

Submersible Effluent Pumps GNB Series

Model-GNB-220,GNB-400,GNB-550,GNB-650 ,GNB-750 , GNB-1000 are recommended for handling light sewage, effluent with suspended solids upto 50mm diameter. Also useful for dewatering of mines, construction pits containing sand and or other abrasive particles. Can be used in coal handling plants in Coal Mines and Power Plants. Light in weight and portable as compared to other solid handling pumps. Can handle fiberous materials such as waste cloth, cotton waste, etc. Useful in cable trenches or tunnels in factory or handling/ removing coolant from machine pits. The impeller can also be given in SS-304 construction for handling corrosive liquids.For Handling water containing Soft Solids like Effluent, Sewage, Kitchen Waste.

Salient Features Of Submersible Effluent Pumps:

For handling water with suspended solids up to 50 mm sphere

Non- clog vortex impeller.

Motor-From 2.2 KW to 10 KW , 2800 rpm motor with "F" class insulation, suitable for three phase power supply of 415 VAC, 50Hz

Motor is jacketed , Thus the pump is suitable for working in worst working conditions having capacity for longer period of dry running.

Dual ball bearing

Dual mechanical seal. - Motor side - Carbon Vs Ceramic.

Pump side - Silicon Carbide Vs. Silicon Carbide

Cable - of suitable rating X 4core double sheathed submersible cable of 10 mtrs length provided as stand length. Extra cable length can be provided with prior information

Material Of construction - All Cast Iron with stainless steel jacket.

Stainless Steel hardware for easy MAINTENANCE

Horizontal discharge with female flange

Effluent Pumps is designed for applications like:

Graywater pumping

Septic Tanks Effluent

STP/ETP Systems

Water Transfer

Dewatering

Basement Sumps
