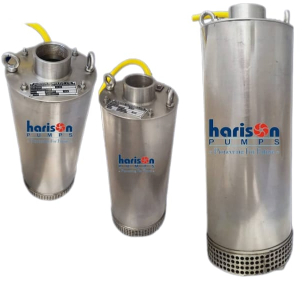

Submersible Pump for Seawater Handling-SLS Series

The entire pump is built with stainless steel, right from body to the impeller and shaft, making it light and resistant to corrosion. This pump is sealed mechanically from both inside and outside, preventing electrical and water leakage during its operation and enhancing life of the pump. Positioning the suction at the bottom edge of the pump facilitates removal of water, right up to the bottom level.

Submersible Sea Water Handling Pump Specifications

All Wetted Parts in Stainless Steel Construction.

All Cast Parts in Investment Castings of CF8M

Material Construction:

Pump Body and Impeller: Made from high-grade stainless steel (e.g., AISI 316L or duplex stainless steel) for superior corrosion resistance and durability.

Motor Housing: Equipped with a corrosion-resistant seal to protect the motor from seawater.

Motor Specifications:

Type: Electric, usually with a hermetically sealed design to prevent water ingress.

Power Rating: Ranges from 0.5 kW to over 200 kW, depending on the pump size and application.

Voltage: Can vary, typically 380V, 400V, or 460V.

Performance Parameters:

Flow Rate: From a few cubic meters per hour (m³/h) to several hundred m³/h.

Head: Can range from a few meters to over 100 meters.

Temperature Range: Designed to operate in temperatures from -10°C to 40°C.

Design Features

Hydraulic Design: Optimized for efficient handling of seawater with minimal wear.

Sealing System: Advanced sealing technology to prevent leakage and contamination.

Cooling System: Some models include additional cooling mechanisms to handle high operational temperatures.

Dimensions and Weight:

Size: Varies based on capacity and installation requirements.

Weight: Depends on pump size and materials.

Applications - Can Be Made Suitable For Sea Water Handling, Effluents, And Other Corrosive Liquids

• Desalination Plants: For pumping sea water into desalination systems.
• Offshore Platforms: Used in oil and gas operations for cooling, water injection, and other processes.
• Industries : Power plants, Cements plants, Thermal plants, Shipyard / Dry Dock application.
• Marine Construction : Ideal for dewatering and water management during construction projects.
• Aquaculture : Maintains water circulation and quality in fish farms and marine life habitats.
• Seawater Lift Stations: Used in coastal and marine environments for various water handling needs.
• Flood Control: Helps manage and control flooding in coastal regions.

These pumps are engineered to ensure longevity and reliable performance in harsh marine environments, making them crucial for many industrial and marine applications.
